heap

Command heap

The heap command provides information on the heap chunk specified as argument. For the moment, it only supports GlibC heap format (see this link for malloc structure information). Syntax to the subcommands is straight forward:

gef➤ heap <sub_commands>

main_arena symbol

If the linked glibc of the target program does not have debugging symbols it might be tricky for GEF to find the address of the main_arena which is needed for most of the heap subcommands. If you know the offset of this symbol from the glibc base address you can use GEF's config to provide said value:

gef➤ gef config gef.main_arena_offset <offset>

If you do not know this offset and you want GEF to try and find it via bruteforce when executing a heap command the next time, you can try this instead:

gef➤ gef config gef.bruteforce_main_arena True

Note that this might take a few seconds to complete. If GEF does find the symbol you can then calculate the offset to the libc base address and save it in the config.

Sometimes, the dump might not contain proper info to help GEF find the libc version, which results in failure to parse the arena information. In this case, you can try to provide GEF a specific libc version to use with the following command:

gef➤ gef config gef.libc_version 2.31

heap chunks command

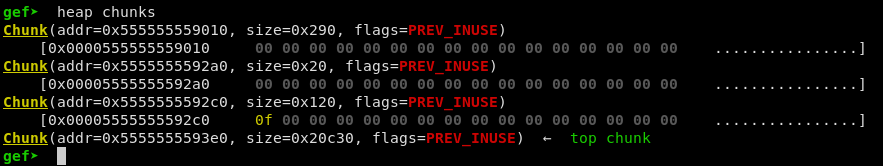

Displays all the chunks from the heap section of the current arena.

gef➤ heap chunks

heap-chunks

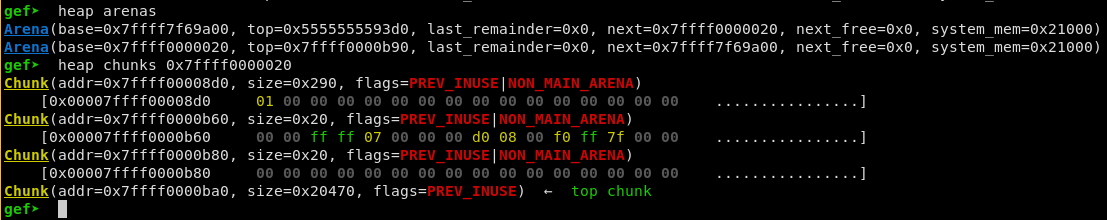

To select from which arena to display chunks either use the heap set-arena command or provide the base address of the other arena like this:

gef➤ heap chunks [arena_address]

heap-chunks-arena

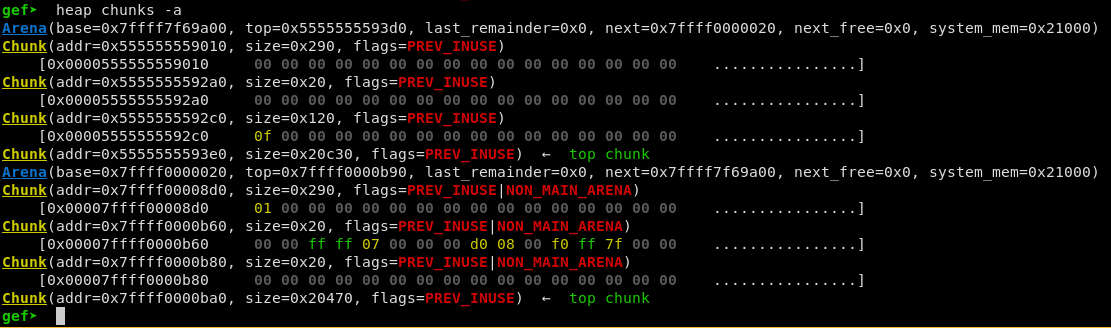

In order to display the chunks of all the available arenas at once use

gef➤ heap chunks -a

heap-chunks-all

Because usually the heap chunks are aligned to a certain number of bytes in memory GEF automatically re-aligns the chunks data start addresses to match Glibc's behavior. To be able to view unaligned chunks as well, you can disable this with the --allow-unaligned flag. Note that this might result in incorrect output.

To get a higher level overview of the chunks you can use the --summary flag too.

gef➤ heap chunks --summary

heap-chunks-summary

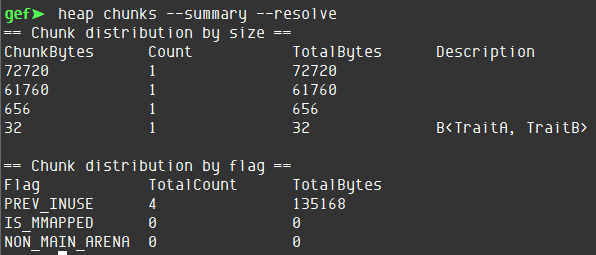

Sometimes, multiple types of objects could have the same size, hence it might not be enough only knowing the chunk size when debugging issues like memory leaks. GEF supports using the vtable to determine the type of the object stored in the chunk. To enable this feature, use --resolve along with the --summary flag.

gef➤ heap chunks --summary --resolve

heap-chunks-summary-resolve

Heap chunk command also supports filtering chunks by their size. To do so, simply provide the --min-size or --max-size argument:

gef➤ heap chunks --min-size 16 --max-size 32

heap-chunks-size-filter

The range is inclusive, so the above command will display all chunks with size >=16 and <=32.

If heap chunks command still gives too many chunks, we can use --count argument to limit the number of the chunks in the output:

gef➤ heap chunks --count 1

heap-chunks-size-filter

heap chunk command

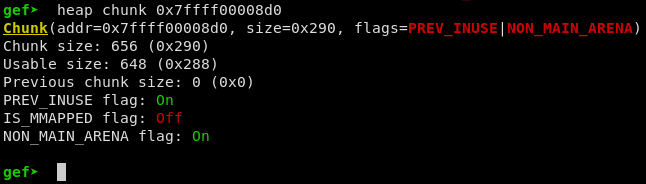

This command gives visual information of a Glibc malloc-ed chunked. Simply provide the address to the user memory pointer of the chunk to show the information related to a specific chunk:

gef➤ heap chunk [address]

heap-chunk

Because usually the heap chunks are aligned to a certain number of bytes in memory GEF automatically re-aligns the chunks data start addresses to match Glibc's behavior. To be able to view unaligned chunks as well, you can disable this with the --allow-unaligned flag. Note that this might result in incorrect output.

There is an optional number argument, to specify the number of chunks printed by this command. To do so, simply provide the --number argument:

gef➤ heap chunk --number 6 0x4e5400
Chunk(addr=0x4e5400, size=0xd0, flags=PREV_INUSE)
Chunk(addr=0x4e54d0, size=0x1a0, flags=PREV_INUSE)
Chunk(addr=0x4e5670, size=0x200, flags=PREV_INUSE)
Chunk(addr=0x4e5870, size=0xbc0, flags=PREV_INUSE)
Chunk(addr=0x4e6430, size=0x330, flags=PREV_INUSE)
Chunk(addr=0x4e6760, size=0x4c0, flags=PREV_INUSE)

heap arenas command

Multi-threaded programs have different arenas, and the knowledge of the main_arena is not enough. gef therefore provides the arena sub-commands to help you list all the arenas allocated in your program at the moment you call the command.

heap-arenas

heap set-arena command

In cases where the debug symbol are not present (e.g. statically stripped binary), it is possible to instruct GEF to find the main_arena at a different location with the command:

gef➤ heap set-arena [address]

If the arena address is correct, all heap commands will be functional, and use the specified address for main_arena.

heap bins command

Glibc uses bins for keeping tracks of freed chunks. This is because making allocations through sbrk (requiring a syscall) is costly. Glibc uses those bins to remember formerly allocated chunks. Because bins are structured in single or doubly linked list, I found that quite painful to always interrogate gdb to get a pointer address, dereference it, get the value chunk, etc... So I decided to implement the heap bins sub-command, which allows to get info on:

  • fastbins
  • bins
  • unsorted
  • small bins
  • large bins
  • tcachebins

heap bins fast command

When exploiting heap corruption vulnerabilities, it is sometimes convenient to know the state of the fastbinsY array.

The fast sub-command helps by displaying the list of fast chunks in this array. Without any other argument, it will display the info of the main_arena arena. It accepts an optional argument, the address of another arena (which you can easily find using heap arenas).

gef➤ heap bins fast
──────────────────────── Fastbins for arena 0x7ffff7fb8b80 ────────────────────────
Fastbins[idx=0, size=0x20]  ←  Chunk(addr=0x555555559380, size=0x20, flags=PREV_INUSE)
Fastbins[idx=1, size=0x30] 0x00
Fastbins[idx=2, size=0x40] 0x00
Fastbins[idx=3, size=0x50] 0x00
Fastbins[idx=4, size=0x60] 0x00
Fastbins[idx=5, size=0x70] 0x00
Fastbins[idx=6, size=0x80] 0x00

Other heap bins X command

All the other subcommands (with the exception of tcache) for the heap bins work the same way as fast. If no argument is provided, gef will fall back to main_arena. Otherwise, it will use the address pointed as the base of the malloc_state structure and print out information accordingly.

heap bins tcache command

Modern versions of glibc use tcache bins to speed up multithreaded programs. Unlike other bins, tcache bins are allocated on a per-thread basis, so there is one set of tcache bins for each thread.

gef➤ heap bins tcache [all] [thread_ids...]

Without any arguments, heap bins tcache will display the tcache for the current thread. heap bins tcache all will show the tcaches for every thread, or you can specify any number of thread ids to see the tcache for each of them. For example, use the following command to show the tcache bins for threads 1 and 2.

gef➤ heap bins tcache 1 2
